Spoilage & write-offs
An undetected breach turns a full load into a write-off. By the time the depot notices, the truck is already at the customer — and the freight is past the point of no return.
Cold Chain · Temperature-Critical Fleets
Every degree, every
minute, every load.
Multi-zone Bluetooth temperature sensors integrated with Fleet Destiny — for pharmaceutical, food, and fresh-produce fleets that can't afford a thaw.
PharmaceuticalFood & BeverageFresh ProduceVaccinesFloral & Plant
The Reality
Cold chain is unforgiving.
One temperature excursion can cost hundreds of thousands — in spoiled stock, regulatory fines, or a lost contract.
Customer records & claims
Customers often ask for a clear temperature history before accepting a disputed load. Manual records are slow, incomplete, and difficult to match with the vehicle, route, or exact delivery time.
No visibility in transit
Once a reefer leaves the depot, most fleets are flying blind. Door openings, compressor glitches, and route deviations go unnoticed until something goes wrong — and by then, the cost is already locked in.
Our Solution
End-to-End Cold Chain Visibility
Combine GPS fleet tracking with continuous multi-zone temperature monitoring in a single platform.
Multi-Zone Temperature Monitoring
- Up to 4 independent temperature zones per vehicle
- DS18B20 probes accurate to ±0.1°C
- Configurable upper/lower alert thresholds per zone
- Historical charts for any time range
Door Sensor Integration
- Magnetic door sensors for each compartment
- Timestamp every door open/close event
- Alert on doors left open beyond threshold
- Cross-reference with delivery stops on map
Temperature History & Exports
- Timestamped temperature logs
- Chain of custody documentation per delivery
- Digital signature capture at handoff points
- Export to PDF/CSV for customer records
Real-Time Excursion Alerts
- Instant SMS/email on temperature breach
- Escalation tiers: warn → critical → emergency
- Alert includes vehicle location, zone, and current temp
- Driver in-cab buzzer integration available

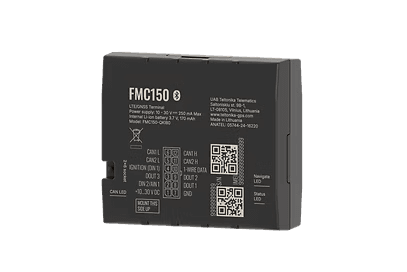

Advanced vehicle intelligence · FMC150
The bridge between the load, the vehicle and your control room.
For advanced cold-chain deployments, the FMC150 combines live location, built-in CAN data processing and external sensor inputs in one compact 4G device. That means temperature, cargo-door activity, driver identity, fuel use and vehicle health can share one operational timeline.
Built-in CAN processor100+ CAN parameters*4G LTE Cat 1EV data capable*
CAN
Vehicle data
BLE / 1-Wire
Cargo sensors
4G + GNSS
Live platform
Powertrain & driving
Understand how the vehicle is being operated while the load is in transit.
- Engine RPM
- Engine load
- Engine temperature
- Accelerator position
- Wheel speed
- Harsh driving
Fuel & operating cost
Turn native vehicle data into consumption, utilisation and loss signals.
- Fuel level
- Total fuel used
- Fuel rate
- Engine hours
- Mileage
- AdBlue level*
Cold-chain signals
Bring cargo conditions and vehicle events into the same incident timeline.
- BLE sensor data
- 1-Wire temperature
- Cargo-door status
- Reefer input
- Buzzer output
- Backup power
Control & accountability
Identify the driver and react to events at the vehicle when required.
- iButton driver ID
- Ignition state
- Crash detection
- Towing detection
- Jamming alerts
- Immobiliser output
Core hardware specification
Built for continuous in-vehicle telemetry.
Operating range without battery: −40°C to +85°C · IP41
Network
4G LTE Cat 1 + 2G
Vehicle data
2 × CAN interfaces
CAN capability
100+ parameters*
Local memory
128 MB · 422,400 records
Wireless
Bluetooth 4.0 LE
Sensor bus
1-Wire data
Input voltage
10–30 V DC
Backup battery
170 mAh Li-ion
Configurable around the vehicle and the cargo.
Event logic includes speeding, excessive idling, driver behaviour, crash, towing, unplugging, jamming and geofences. Firmware and configuration can be managed remotely through FOTA Web.
Live GNSS trackingOver-speedingExcessive idlingGreen drivingCrash detectionUnplug detectionAuto geofencesRemote FOTA updates
* CAN and EV parameters vary by vehicle make, model, year and available OEM configuration. Inputs and outputs can vary by FMC150 hardware variant. The unit is installed in a protected vehicle location; cargo-space sensing is handled by the connected EYE or wired probes shown below.
Hardware · Wireless Sensor
Multi-zone monitoring,
in a button.
Battery-powered Bluetooth temperature and humidity sensors. One per zone, deployed in minutes, broadcasting straight to the in-truck receiver and on to Fleet Destiny. Survives the cold, ignores the damp, lasts five years on a coin cell.
Sensing
- Temperature range
- −40 °C to +85 °C
- Temperature accuracy
- ±0.5 °C
- Humidity range
- 0 – 100 % RH
- Humidity accuracy
- ±3 % RH
- Sample rate
- Configurable from 1 s
- Tamper detection
- Built-in accelerometer
Power & battery
- Cell
- CR2477 lithium coin (replaceable)
- Service life
- Up to 5 years (typical duty)
- Power profile
- Sleep between samples — sub-μA idle
Connectivity
- Protocol
- Bluetooth Low Energy 4.2
- Range
- Up to 30 m line-of-sight
- Buffering
- On-board cache when out of range
- Pairing
- Auto-bind to in-truck receiver
Mechanical & environment
- Form factor
- Disc, ~50 × 11 mm · ~15 g
- Mounting
- Magnetic · adhesive · screw
- IP rating
- IP67 — dust & water resistant
- Operating temp
- −40 °C to +85 °C
- Compliance
- CE · FCC · RoHS
5-year batteryIP67 sealed±0.5 °C accuracyMulti-zone capableTamper-detect
Specs reflect typical operating ranges. Datasheet and calibration certificate provided per deployment.
Live Data · Sensor Readings
Every reading.
Every minute.
See the health of every refrigerated load in one operational view — with live zone temperatures, door events and excursions tied to the vehicle.
Custom-designed · On requestLive
Operations centre
Cold Chain Control
12
Active loads
11
Within range
1
Needs attention
24/24
Probes online
Temperature history
In rangeTTR-214 · Pharmaceuticals
4.2°C
Target 2°C – 8°C
06:0007:0008:0009:0010:00Now
Front zoneCentre zoneRear zone
Front zone
4.1°C
Stable
Centre zone
4.2°C
Stable
Rear zone
4.5°C
Door closed
Johannesburg → Bloemfontein · Updated seconds agoTELEMETRY STREAM CONNECTED
Live chartsThreshold alertsTemperature exportsTimestamped logsMulti-zone view

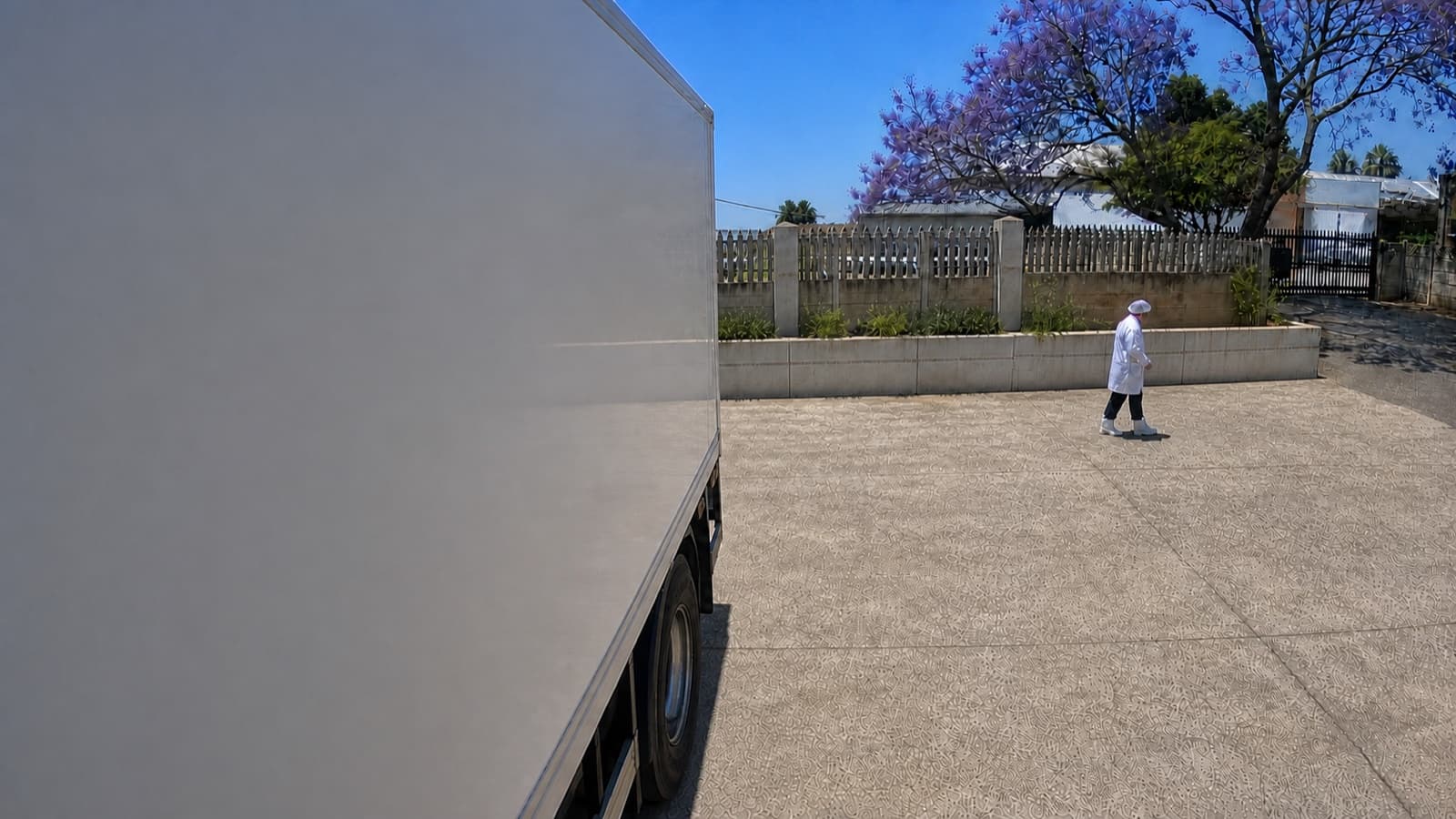

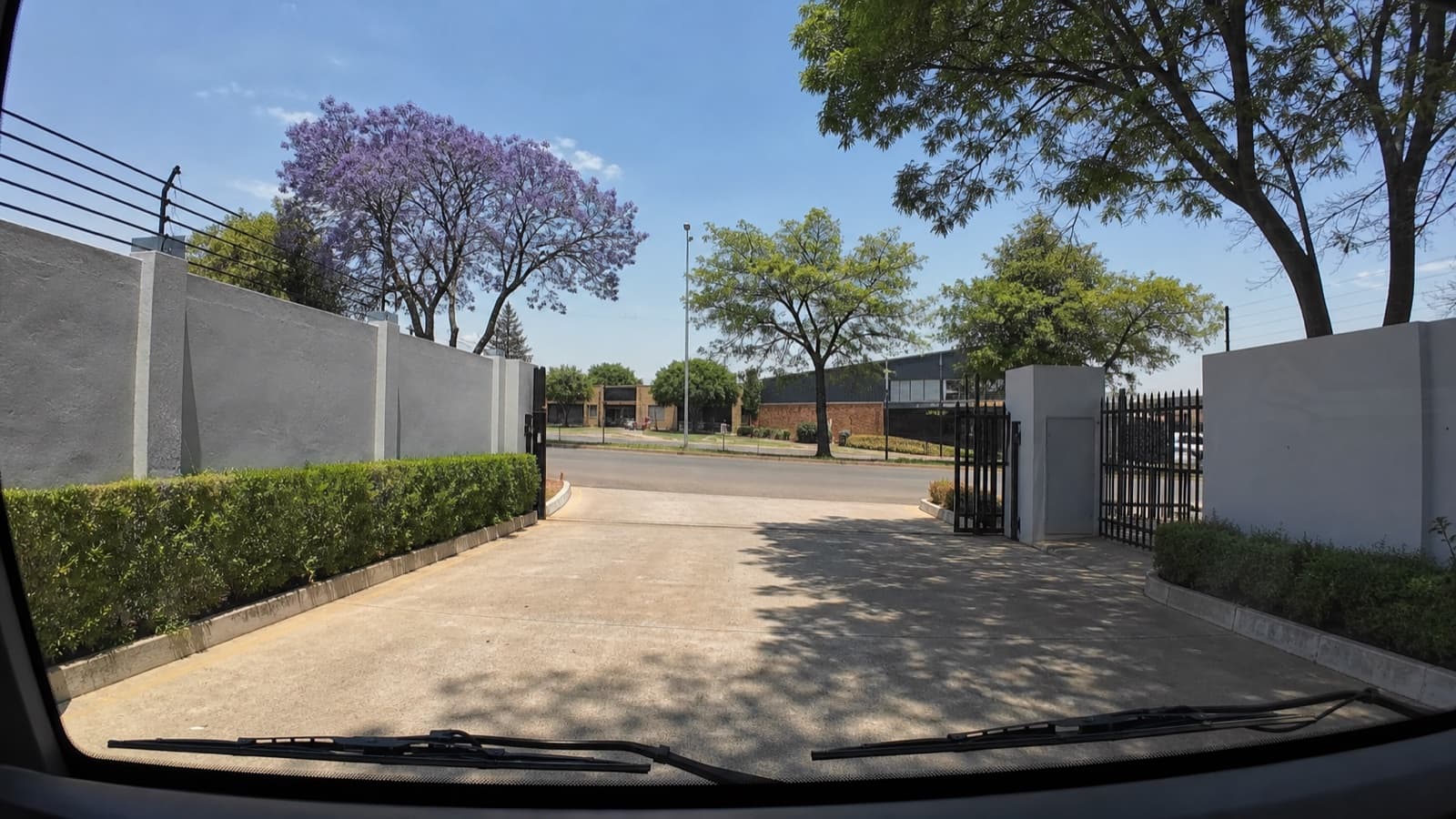

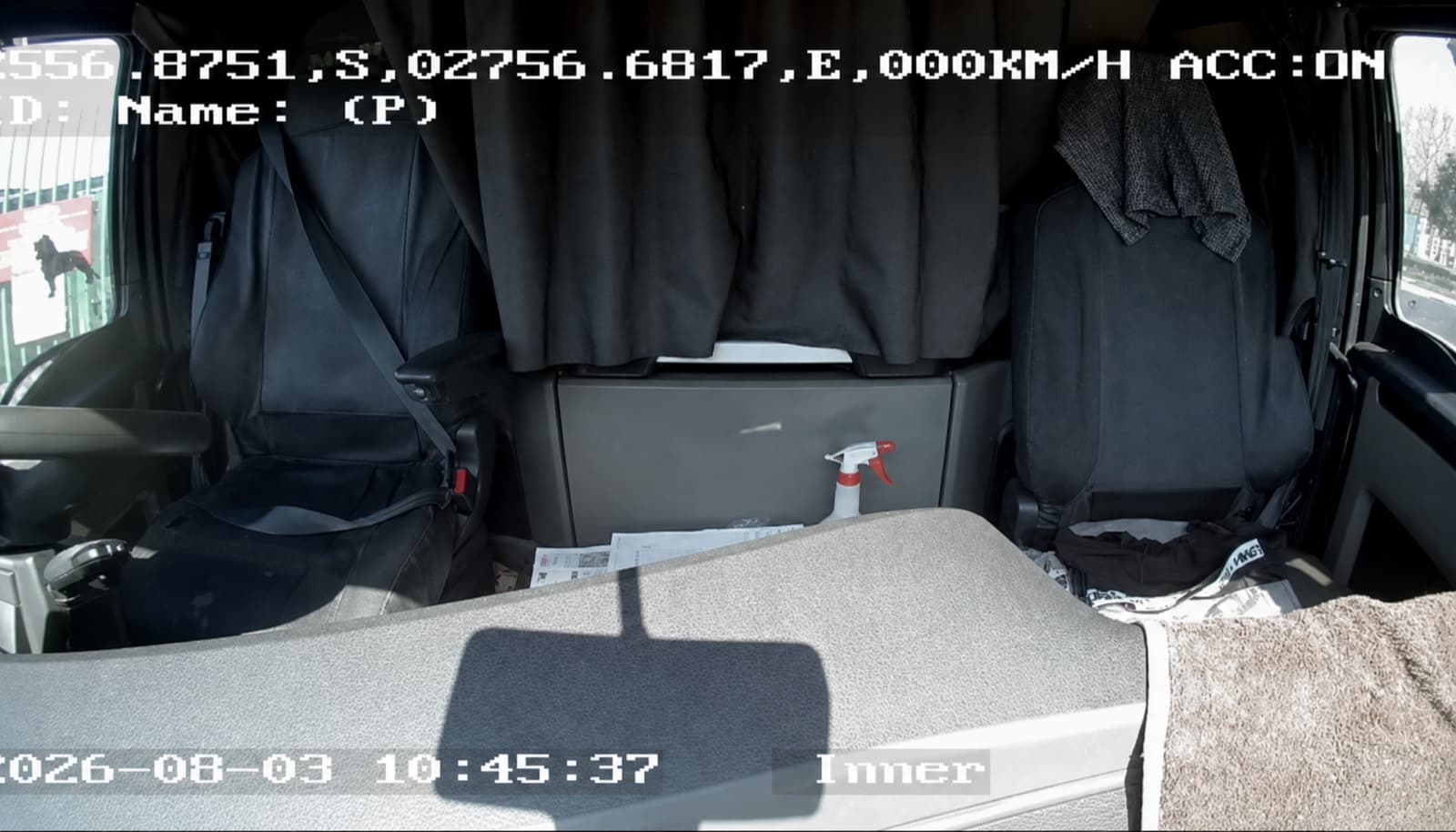

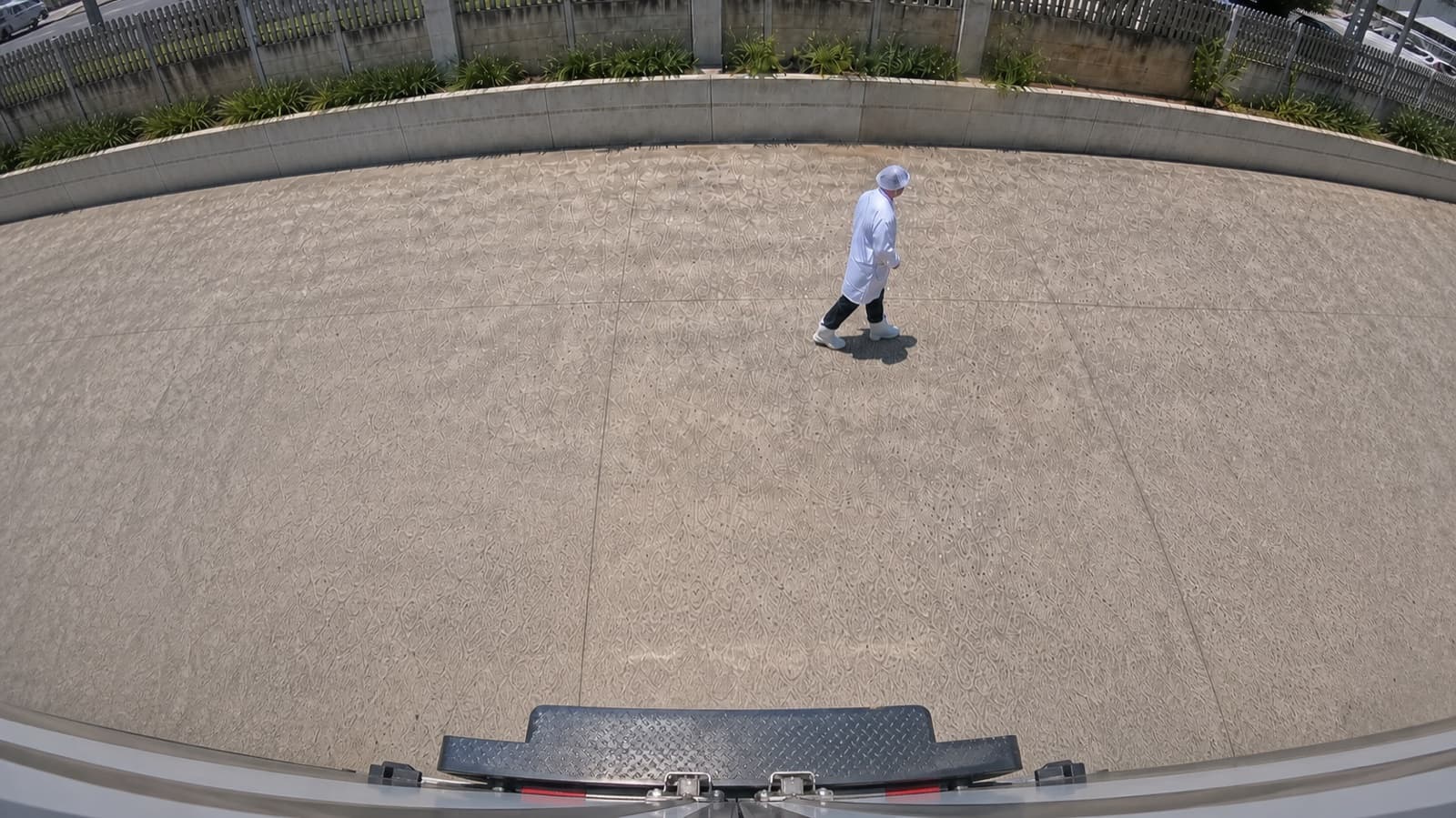

MDVR · Live multi-camera view
See the whole vehicle, not just a dot on a map.
With an MDVR installed, your control room can open one vehicle and view every connected camera — road, driver, cargo and loading areas — from one screen.
Refrigerated Fleet · TTR-214
5-channel MDVR preview
4G connectedLive
CH 03REC
GPS · 0 km/h · ACC ON

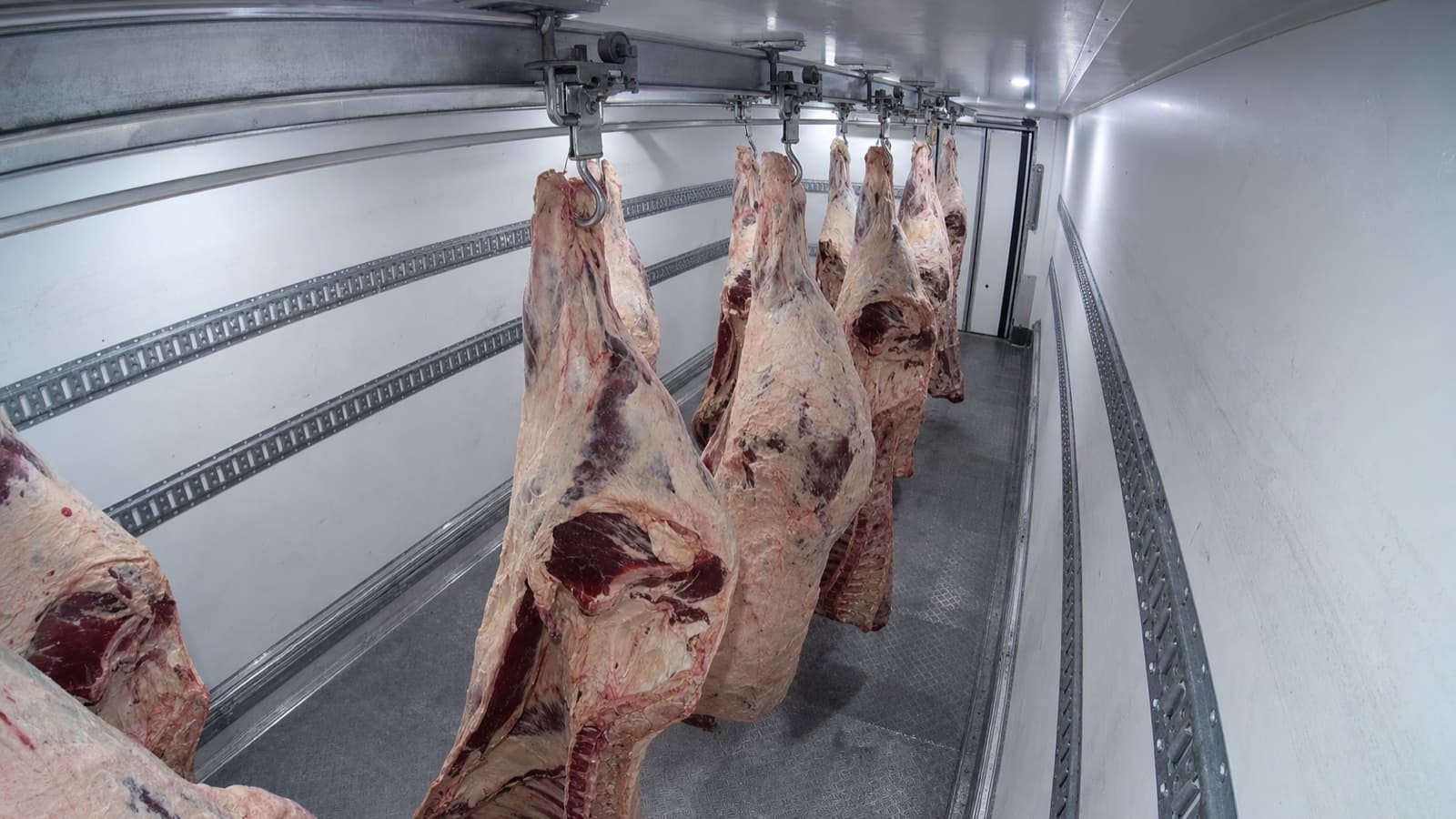

Refrigerated cargo bay
Trailer interior
5/5 cameras online Recording locally GPS linked
Select any channel to enlargeLive operational view
Check loading, cargo and vehicle surroundings while the unit is online.
Recorded incident playback
Return to the relevant channel and time when an alert or dispute occurs.
Evidence matched to fleet data
Compare footage with GPS position, temperature readings and door events.
Example five-channel MDVR configuration. Live viewing depends on mobile data coverage; supported systems continue recording locally when the vehicle is offline.
Pricing
Advance by month.
Sensors by purchase.
ACM Advance is a flat monthly subscription per vehicle. EYE Sensors are a one-off hardware purchase. No setup fees, no per-zone monthly charges, no surprises.
Monthly · Per vehicle
ACM Advance
R200
/vehicle/month
Flat monthly subscription. Covers the platform, the dashboard, the alerts, and temperature-history reporting — for every vehicle on your cold-chain fleet.
- Live GPS + trip history
- Real-time temperature & humidity dashboard
- Driver behaviour scoring
- Geofencing & route alerts
- Excursion alerts (SMS + email)
- Temperature-history exports
- Timestamped sensor logging
- Fleet Destiny platform access
- Mobile app access
One-off · Per sensor
EYE Sensor
R1 499
/sensor (once-off)
Bluetooth temperature & humidity sensor. Buy one per zone — frozen, chilled, ambient — and add more whenever your fleet grows.
- Bluetooth Low Energy 4.2
- Temperature: ±0.5 °C accuracy
- Humidity: ±3 % RH accuracy
- 5-year battery (CR2477)
- IP67 sealed housing
- Built-in accelerometer (tamper-detect)
- Auto-pair with in-truck receiver
- Multi-zone — one per zone, no software cost
Excludes VAT. Hardware installation is quoted separately per vehicle configuration. Custom volume pricing available for fleets of 25+ vehicles — talk to us.
Case Study
Representative18-vehicle reefer fleet · Western Cape produce distributor
Zero temperature excursions in 8 months — and audit prep dropped from 2 hours to 10 minutes.
A Western Cape produce distributor supplying fresh fruit and vegetables to a major supermarket chain had recently absorbed a R280,000 loss and a compliance warning from a single missed temperature breach. After deployment, the operation maintained a perfect cold-chain compliance record across 18 reefer vehicles — three temperature zones per truck, monitored continuously, exported to retailer audit format on demand.
18 vehicles monitored across 3 temperature zones each
Audit documentation cut from 2 hours to 10 minutes
Driver door discipline improved after open-door alerts introduced
0
Excursions in 8 months
R280k
Loss avoided (prior incident scale)
10 min
Audit prep time (was 2h)
100%
Compliance score
* Representative scenario based on typical SA cold-chain deployments and industry-benchmark outcomes. Actual results vary by fleet size, route profile, and retailer compliance regime. Named customer references available on request.
Ready to Protect Your Cold Chain?
Speak to a specialist. We'll design a sensor configuration for your fleet, cargo and reporting requirements.
Multi-Zone Monitoring
Custom Threshold Alerts
Exportable Temperature Logs
South African Support
